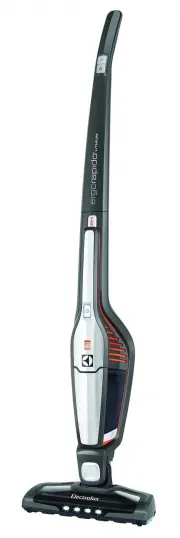

Electrolux ZB3013 User Manual - Free PDF Download

Page 4 - 포장 박스에 포함되어있는 지 확인하십시오.

4 EN IND KR TH VIET CH TW BEFORE STARTING • Check that the package includes all parts described in this ERGORAPIDO™ instruction manual. • Read this instruction manual carefully. • Pay special attention to the safety precautions chapter. TABLE OF CONTENTS Safety precautions . . . . . . . . . . . . . ...

Page 5 - Safety precautions

55 EN IND KR TH VIET CH TW When using an electrical appliance basic precautions should always be followed. Ergorapido™ should only be used for normal vacuuming in a domestic environment. Make sure the vacuum cleaner is stored in a cool and dry place. All servicing and repairs must be carried out by ...

Page 6 - PETUNJUK KESELAMATAN

66 EN IND KR TH VIET CH TW Saat menggunakan alat-alat listrik, anda harus mematuhi segala petunjuk keselamatan. Ergorapido™ hanya boleh digunakan untuk mengisap debu di rumah. Pastikan mesin pengisap debu tersimpan dalam tempat yang sejuk dan kering.Segala usaha layanan and reparasi harus dilakukan ...

Page 9 - CÁC BIỆN PHÁP PHÒNG NGỪA AN TOÀN

99 EN IND KR TH VIET CH TW Khi sử dụng thiết bị điện, luôn phải tuân thủ các biện pháp phòng ngừa cơ bản. Chỉ được sử dụng Ergoapido™ để hút bụi bình thường ở môi trường trong nhà. Hãy chắc chắn rằng máy hút bụi được để ở nơi khô mát. Tất cả việc bảo dưỡng và sửa chữa phải do trung tâm dịch vụ đượ...

Page 10 - 警告:

10 10 EN IND KR TH VIET CH TW 使用家用电器时，请务必始终遵守基本的安全防范措施。Ergorapido ™ 吸尘器只能用作普通家用吸尘器。请将吸尘器存放在阴凉干燥的环境中。所有保养和维修工作只能由Electrolux 授权服务中心完成。禁止儿童接触任何包装材料，以免发生窒息事故。警告：为了预防火灾、电击或伤害事故，应严格遵守以下说明：1 . 每台吸尘器都对应一个特定的工作电压。检查电源电压与充电器标示的电压是否一致。仅使用与这款吸尘器的型号相符的原装充电器。 2 . 对于因身体、感官或心智能力缺陷、经验不足或对该产品缺乏了解而无法安全使用的成人或儿童，应...

Page 13 - DESCRIPTION OF ERGORAPIDOTM; Alternative placement for crevice and brush; KETERANGAN ERGORAPIDOTM; Alternatif tempat meletakkan dan sikat

13 13 EN IND KR TH VIET CH TW DESCRIPTION OF ERGORAPIDO™ 1. On/off button 2. Power Up/Down button 3. On/off button, hand unit 4. Handle 5. Main body 6. Locking screw 7. Release button, hand unit 8. Charging station, wall unit 9. Charging station, floor unit 10. Adapter 11. Fine filter (inner filter)...

Page 14 - MÔ TẢ ERGORAPIDOTM; Bộ phận nắn dòng; ERGORAPIDO

14 14 EN IND KR TH VIET CH TW MÔ TẢ ERGORAPIDO™ 1. Nút bật/tắt 2. Nút Tăng/Giảm Công Suất 3. Nút bật/tắt, bộ phận cầm tay 4. Cán cầm 5. Phần thân chính 6. Vít hãm 7. Nút nhả, bộ phận cầm tay 8. Đế sạc, bộ phận gắn vào tường 9. Đế sạc, bộ phận đặt dưới sàn 10. Bộ phận nắn dòng 11. Phễu lọc tinh (phễ...

Page 15 - 포장 제거 및 조립

15 15 EN IND KR TH VIET CH TW Unpacking and assembly 1. Fit the handle by carefully inserting it into the main body. Charging station 1. Insert the adaptor into the mains and position the charging station on a stable and horizontal surface away from heat sources, direct sunlight or wet places. There...

Page 16 - Charging ERGORAPIDOTM; menit selah unit di letakkan pada charging stand.; Mengecas ERGORAPIDOTM; การชาร์จ ERGORAPIDOTM; Sạc ERGORAPIDOTM; sạc sẽ nhấp nháy từ từ mỗi phút.

16 16 EN IND KR TH VIET CH TW On ERGORAPIDO™ Lithium the numbers of LED lamps will indicate the level of charge. 3 LED = fully charged. If ERGORAPIDO™ is fully discharged, it requires approximately: 16h for 12V, 14h for the 14,4V; 4h for the 18V. For better battery performance, always keep ERGORAPID...

Page 17 - Vacuuming with ERGORAPIDOTM

17 17 EN IND KR TH VIET CH TW A B Vacuuming with ERGORAPIDO™ Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance. Start and stop ERGORAPIDO™ by pushing the ON/OFF button A...

Page 18 - BRUSHROLLCLEANTM

18 18 EN IND KR TH VIET CH TW 1 2 3 BRUSHROLLCLEAN™ Technology ERGORAPIDO™ 12V, 14,4V and 18V models are equipped with BRUSHROLLCLEAN™ Technology – a function that helps to keep the brush roll free from hair and fibres. It is recommended to use this function once a week. For best results use the BRU...

Page 19 - pada tempat pengisi baterai agar fungsi BRC bekerja kembali.

19 19 EN IND KR TH VIET CH TW 1. Place ERGORAPIDO™ on a hard and even surface. Do not use the BRUSHROLLCLEAN™ function on carpets. 2. Press the BRUSHROLLCLEAN™ pedal with your foot while the cleaner is switched on. Hold for 5 seconds until hairs and fibres are removed and then release the pedal. The...

Page 20 - Emptying of the dust container.; 브러쉬롤클린TM 기능은 브러시롤에 걸리는

20 20 EN IND KR TH VIET CH TW a) b) c) A Please note that the BRUSHROLLCLEAN™ function might not be able to remove thicker threads, wires or fibres that are caught in the brush roll. b) Take out the filters by pressing the release buttons Emptying of the dust container. a) Open the dust container by...

Page 21 - Cleaning the filters.; 필터 청소

21 21 EN IND KR TH VIET CH TW B Pull the filter cleaning rod (B) to its end position and release it to remove dust from the inner filter. Repeat 5 times. Cleaning the filters. (Recommended every 5th emptying). Take out both filters by pressing the release buttons Separate both filters. Tarik tongkat...

Page 22 - (jangan pernah gunakan mesin cuci piring atau mesin cuci baju); PENTING – MEMBERSIHKAN SARINGAN!; 세제를 사용하지않고 미온 수로 필터 부분을 조심해서

22 22 EN IND KR TH VIET CH TW 12 3 6 9 Rinse the filter parts carefully under lukewarm water without using any detergents. (never use the dishwasher or washing machine) Shake to remove excess water and leave to dry minimum 12h.Make sure that the filter parts are completely dried before putting them ...

Page 23 - the hose or in the air channel to the dust cup, and put the hose back.

23 23 EN IND KR TH VIET CH TW Cleaning the hose and air channel Loosen the hose behind the nozzle from its upper connection. Remove any object that can be blocking the airflow in the hose or in the air channel to the dust cup, and put the hose back. Cleaning the wheels If the wheels need to be clean...

Page 24 - Indiction lights-normal operation; Lampu Indikasi-penggunaan normal; Permasalah

24 24 EN IND KR TH VIET CH TW Indiction lights-normal operation What does it mean? What to do? 18V version (Li-Ion battery) : 3 lights = Battery capacity is still good > 75 % left OK 1 – 3 Orange lights during operation 2 lights = Battery capacity is still good > 25 % left OK 1 light = ERGORAP...

Page 25 - 표시등–정상 작동; Ergorapido รุ่น 12V และ 14V

25 25 EN IND KR TH VIET CH TW 표시등–정상 작동 표시등 - 정상 작동 해야할일 18V모델(리튬-이온배터리) : 3개 = 배터리 용량 충분함(75%이상 남음) 없음 작동 중1~3개의 오렌지색 등이 켜짐 2개 = 배터리 용량 충분함(25% 이상 남음) 없음 1개 = 청소기가 몇 분 안에 멈춤 청소 중단 + 청소기 충전 충전거치대에 둔 상태에서 오렌지색 등켜짐 문제없음 - 충전 중 없음 충전거치대에 둔 상태에서 1분에 1회 오렌지색 등이 깜박임 문제없음 - 충전완료 사용 후에는 항상 청소기를 거치대에 둘 것을 권장...

Page 26 - Đèn chỉ báo-hoạt động bình thường

26 26 EN IND KR TH VIET CH TW Đèn chỉ báo-hoạt động bình thường Đèn chỉ báo-hoạt động bình thường Toimi näin? Phiên bản 18V (pin Li-Ion) : 3 đèn = Thời lượng pin vẫn tốt còn lại > 75 % OK 1 – 3 đèn màu cam trong khi đang hoạt động 2 đèn = Thời lượng pin vẫn tốt còn lại > 25 % OK 1 đèn = ERGO...

Page 29 - 保养或维修

29 29 EN IND KR TH VIET CH TW Bảo trì hoặc sửa chữa Trong trường hợp bị hỏng hoặc lỗi, phải mang ERGORAPIDO™ của quý vị tới trung tâm dịch vụ được ủy quyền của Electrolux. Nếu dây nguồn hoặc bộ sạc bị hỏng, phải được Electrolux hoặc đại lý dịch vụ hoặc một người có trình độ tương đương thay thế để t...

Page 30 - KR; 제품 또는 포장에 부착된; IND; 吸尘器或其包装上的; TW; 吸塵器或其包裝上的

30 EN The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you w...
